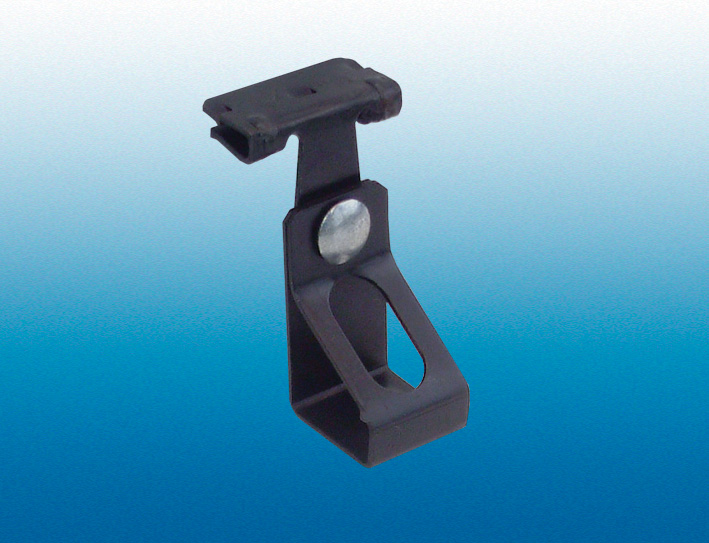

AH624-27 Rod Hanger

Used for Beam Suspension with Screwed Rod

Material
Spring Steel Black Phosphate Finish

Packed
100 per box

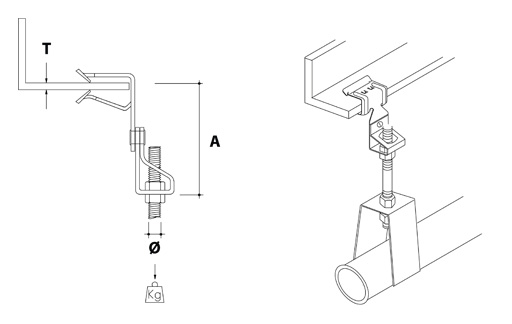

Part No. T
(mm)		 Ø
(mm)		 A
(mm)		 Weight
per 100 (kg)
AH624 1.5-4mm M6 44 2.29
AH625 4-10mm M6 46 3.28
AH626 10-15mm M6 54 3.57
AH627 15-20mm M6 66 3.77
